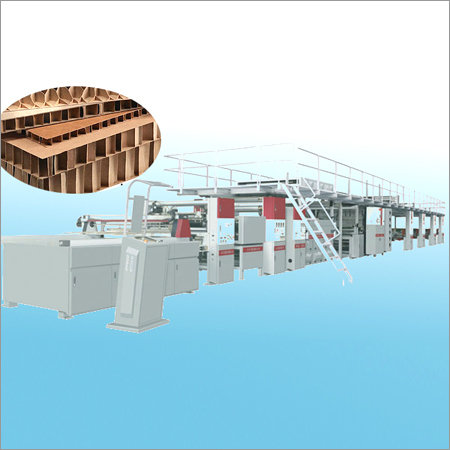

Automatic Paper Honeycomb Core Making Machine

Automatic Paper Honeycomb Core Making Machine
Send Inquiry
Product Code : 84414000
Product Description

Description

EMHC-2000-6 honeycomb paper core machine is one full automatic line to produce honeycomb paper core continuously. No need for paper cutter and honeycomb paper connecting machine. Production flow is Paper rolls Feeding-gluing laminating and pull Horizontal cutting Core paper conveyor Core paper slotting Core paper pulling up stacking Max. paper roll width

Max. paper roll diameter

1300mm

Max. mechanical speed

800 cuts/min

Honeycomb core thickness range

8-100mm

Tolerance of honeycomb thickness

± 0.3mm

Production line dimensions(L*W*H)

30000mm*4500mm*3000mm

Max. paper roll number

6 rolls

Total power

90KW
