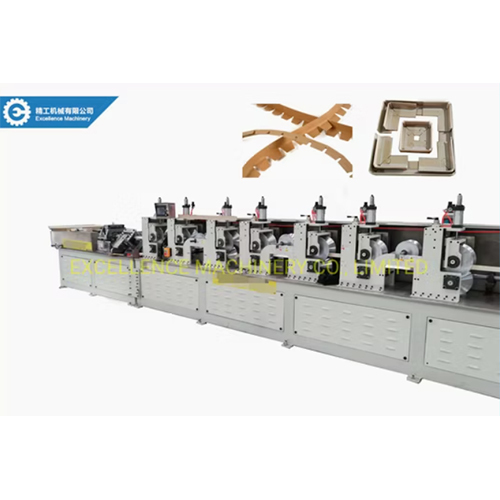

High Speed Paper Edge Protector Machine
30000.00 - 50000.00 USD ($)/Set
Product Details:
- Grade Automatic
- Cutting Speed 400 m/m
- Cutting Size 100-4000mm
- Cutting Thickness 10 Millimeter (mm)
- Voltage 380 Volt (v)
- Power 15 Horsepower (HP)
- Weight (kg) 6000 Kilograms (kg)
- Supply Ability : 10 Set Per Month
- Click to view more
X
Price And Quantity
- 30000.00 - 50000.00 USD ($)/Set
- 1 Set
Product Specifications
- White
- 1 year
- 400 m/m
- 10 Millimeter (mm)
- 30000*1700*1200 Millimeter (mm)
- Automatic
- 15 Horsepower (HP)
- 100-4000mm
- 6000 Kilograms (kg)
- 380 Volt (v)
Trade Information
- Shenzhen
- 10 Set Per Month
- 30 Days
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Product Description
- Japan Mitsubishi PLC,inverter
- Japan Mitsubishi 6 inchestouching panel
- Japan Mitsubishi Servomotor
- Japan THK brand high-speedscrew
- Stainless steel glue tankand stainless steel glue scraper

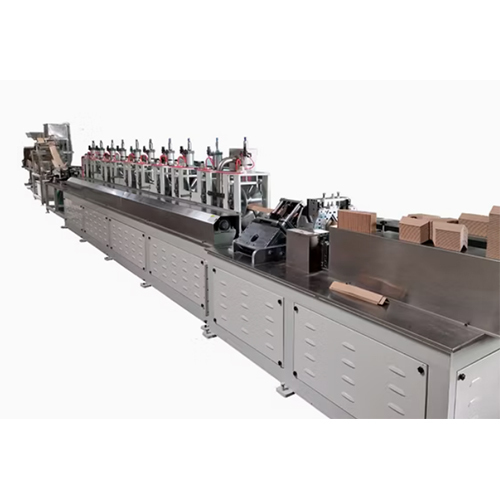

- Optional punching devicecan make different shapes notching on the paper protectors. (round/frame)
Specification:
| Model | EMSXV-120H |
| V protector wing size | 25mm - 120mm |
| Max. thickness | 8mm |
| Quantity of layers | Max. 13 layers |
| Min. cutting length | 100mm |
| Length of the final product | 100--4000mm |
| Production speed | 0-50m/min |
| Paper stand | Composite type with hoist/Liner type with pneumatic lift device |
| Gluing system | Pneumatic pump for cycling |
| Motor power | 12KW |
| Total Weight | App. 5.8T |
| Overall size mm | 27000(Composite type paper stand)/32000*1100*1700 |
| Tolerance | +1mm |
| Forming device | 10 units wheels with drive, 7 units driven |
| Collecting table | Automatic collecting, manual packing |
| Control system | Mitsubishi PLC, servo motor and touch screen |
